**12V 225 lbs Linear Actuator Kit with Power Supply & Wireless Remote – Heavy-Duty for RV, Solar Panels, Home Automation, and DIY Projects**

WindyNation's Linear Actuator Kits include one linear actuator with mounting brackets and optional accessories to power and control your linear actuator. You can select from several accessory options.

Includes 12V 225 lbs Linear Actuator (multiple stroke lengths available) with Mounting Brackets, AC to DC 12 Volt Power Supply, Remote Control Unit, and Wire Connectors

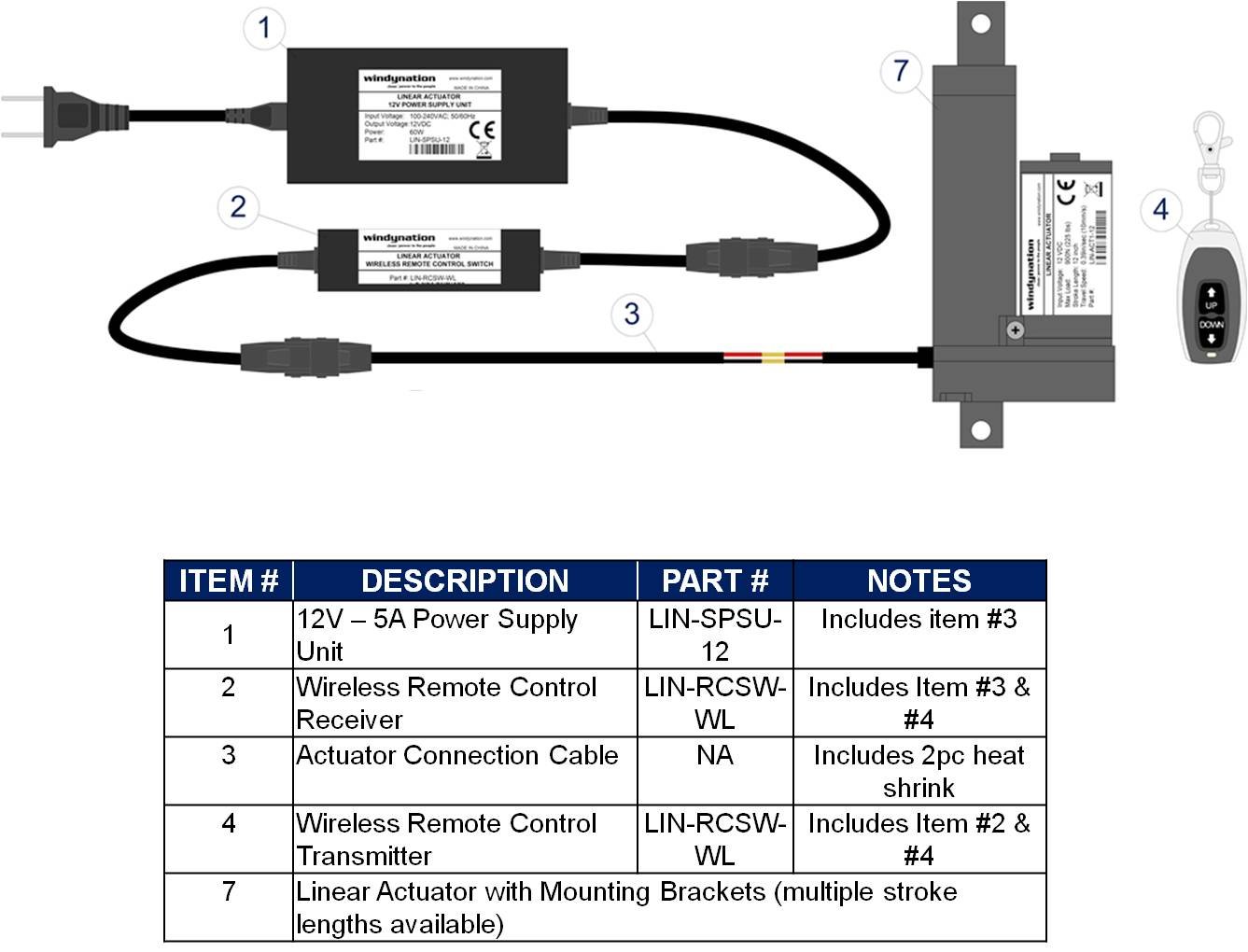

See photo gallery for linear actuator technical specifications and a wiring schematic of the entire system. Extremely easy to wire and assemble using the included locking cable connectors.

Power Supply Specs AC INPUT RANGE 100-240 VAC DC OUTOUT 12 VDC (5 amps maximum) ADDITIONAL INFO 8ft AC extension cord included and 5ft DC extension cord included

Remote Specs POWER RATING 5 amps REMOTE RANGE 90ft maximum FREQUENCY 433.92 Mhz OPERATING CURRENT 15mA SWITCH TYPE DPDT ON-OFF-ON

Complete kit allows end user to remotely control the movement of their linear actuator(s).
