48V 16S 80A LiFePO4 Battery Management System (BMS) with Smart PCB, Balance Wires & Bluetooth Module - for Lithium Iron Phosphate Battery Packs in Solar Energy Storage, Electric Vehicles & Marine Applications

REAL TIME DATA MONITORING Query the battery info viually by bluetooth connecting. Charge discharge parameter setting and charge discharge temperature protection value Control instructions: remote control device monitoring. Vehicle icon: data transmission send command Statistical report: Collect the data information, the customer can monitor the battery capacity & other alarm infomation. Electronic fence: fence setting limit range. Device information: device parameter information, etc. BLUETOOTH SMART BMS Install app on your mobile quickly connect with bluetooth Download the specified bluetooth APP,Connect bluetooth module with SMART BMS on right interface(make sure all ports connection are right or will cause damage to the BMS),Open the bluetooth APP and find the related serial number then you can check all data. ABOUT US Senior design team provide hardware and software to our customers all over the world. ABOUT US Senior design team provide hardware and software to our customers all over the world.

★【Smart LiFePO4 BMS 48V 80A】For our smart bms,when first use,need to activate first,then B- P- can be conductive,voltage from P- can be same from B-, then BMS can work well.

★【Module】Available connect with Android and IOS App and can review the battery status in real time by mobile phone. Through module can set the battery capacity, protection temperature, protection voltage and etc.

★【BMS Activation Method】Method ① Press the button on the module to activate the bms directly.Method ② Charge activation, B-line must be connected to the total negative pole of the battery pack when charging. If Method ① fails to activate the BMS, try Method ② to activate the BMS.

★【VNSZNR BMS】The BMS was be manufactured by high quality Mos and IC. Keep your battery long cycle service life time. Extreme low power consumption. The consumption of the whole device is less than 50uA.PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.It is waterproof, dustproof and shockproof.

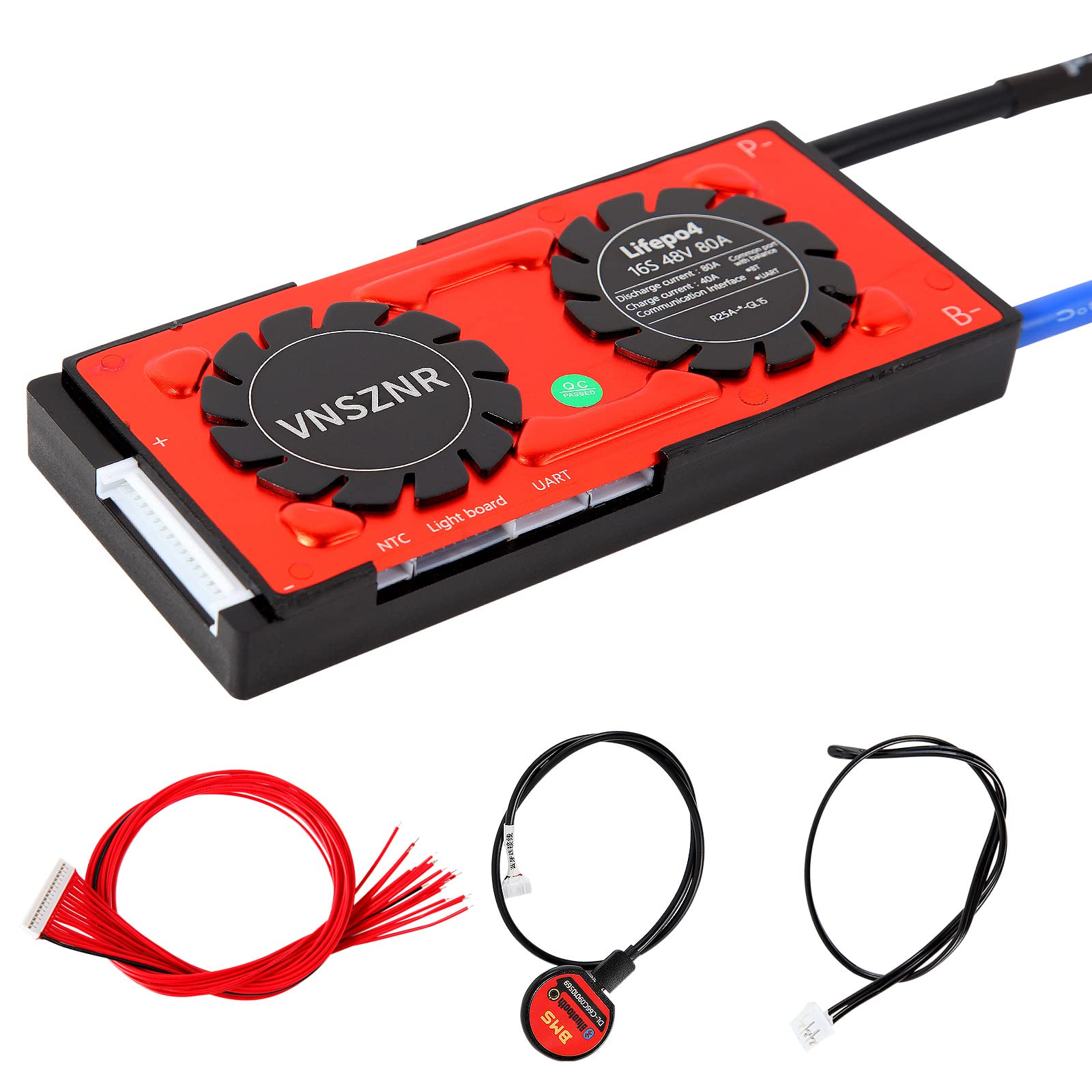

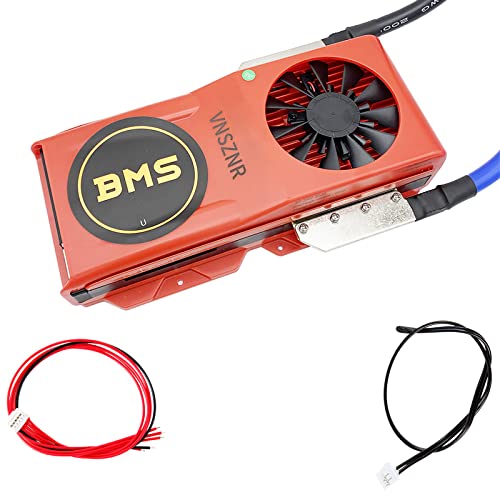

★【VNSZNR BMS】What You Get 1pcs*VNSZNR BMS Lifepo4 16S 48V 60A, 1pcs*module, 1pcs*balance cable and 1pcs*English manual,Package also come with B-P- cable,NTC cable(temperature sensor). 36-months warranty and friendly customer service. Quality Guarantee--- ISO/ FCC/ ROHS/ PSE/ CE APPROVED.
