IP67 waterproof rating and advanced 500AMP solenoid valve. Equipped with the latest generation wireless remote control for all the latest X BULL winches.

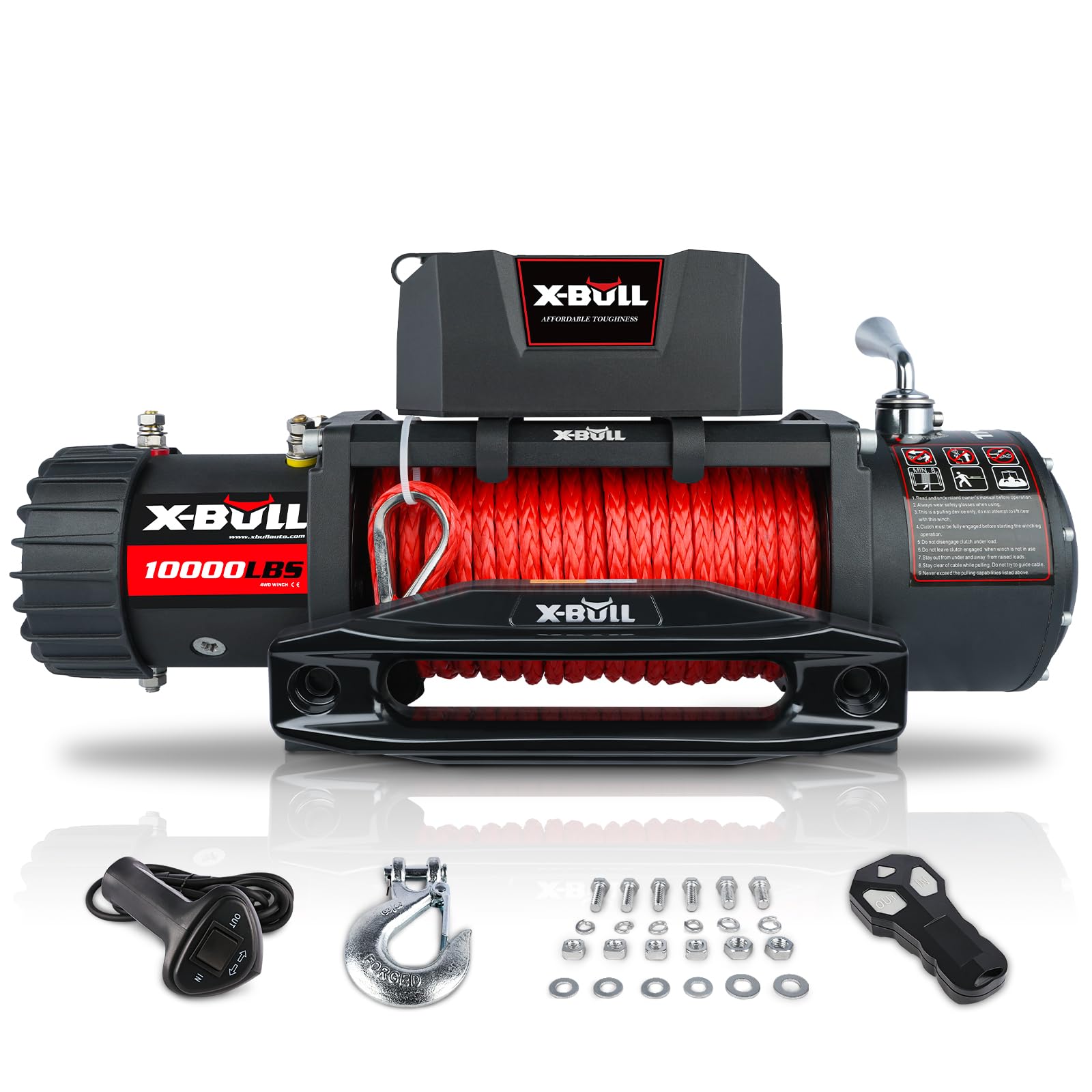

The 10000 lb. Winch powered by a 4.5kw/5.6hp output permanent magnet DC 12V motor.The new solenoid truly achieves the principle of heat insulation, durability, high stability, avoid the problem of capstan damage or motor burning caused by insufficient solenoid power.The new clutch system strengthens the connection between the clutch and the gear, it is not easy to cause damage to the clutch.
Installation dimensions (length X width X height) 20.8"X 6.5" X 10.24", mounting bolt type 10.00 ± 0.015" × 4.50 ± 0.010". Synthetic rope 3/8' 'x 78 feet
Winch Load Capacity 10,000 Pounds;5.6 Horsepower; Gear Ratio 2651; With a 3-stage planetary gear system for strong pulling; The unique design is very suitable for your jeep Wrangler, SUVs, trucks and trailers, making it more attractive and cool
To install the winch and fairlead, getting a mounting bracket set up which not includes in this product; Please read the instructions carefully before operating the winch; Using the snatch block to help your work more easily; Another safety tip throw a blanket onto the cables to reduce whiplash if something breaks loose
